About PymateIO
|
PymateIO is an affordable Industrial Controler (PLC) Powered with MicroPython.
PymateIO is ready for Industry, Reliable, Developer-Friendly and Easy to Install.

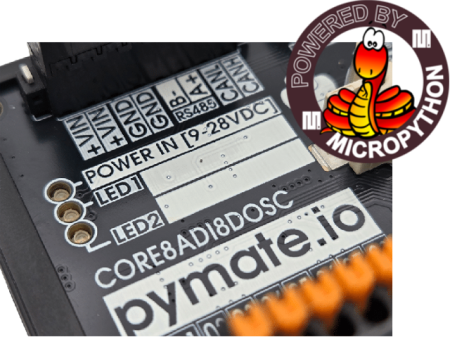

Micro Python is an optimized version of Python 3 dedicated to embedded systems like microcontollers.
Python scripts are stored on the device and running on z bare metal Python Virtual Machine (like computer does).
|
PymateIO EcoSystem
PymateIO is expandable by design starting with few board, new arrivals should come with time.
Key products
|

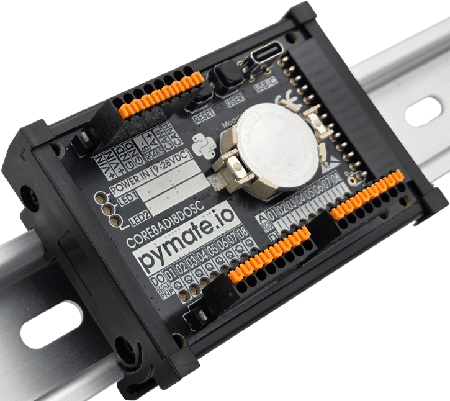

PymateIO Core Core8ADI8DOSC
- DIN rail mounting
- Spring cage connector
- 8-28V power supply
- 8 digital inputs 12/24V tolerant
- up 8 configurable analog inputs (10V max)
- 8 digital outputs (PNP, 250mA, High Side control)
- 1 user button, 2 user LEDs
- Native Modbus via RS485
- Dedicated status LEDs for each Inputs/Outputs
- Expandable by design with LTE-M, WiFi, Ethernet, relays, analog I/Os, PT100, Zigbee, and more,..
- Native USB support
- MicroPython support with libraries
- Developper friendly
- Core8ADI8DOSC product tour
TODO:Link to shop
|
|

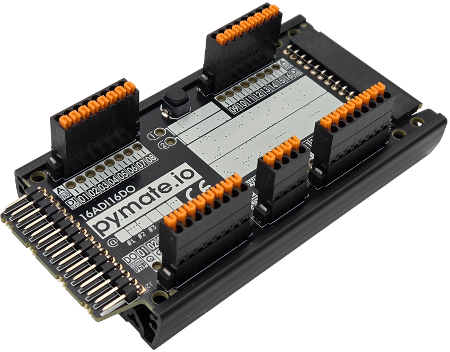

PymateIO 16ADI16DO expansion
- DIN rail mounting
- Plug-and-play (ready to use)
- Daisy chain by design (up to 120 boards)
- Spring cage connector
- 8-28V power supply
- 16 digital inputs 12/24V tolerant
- up 16 configurable analog inputs (10V max)
- 16 digital outputs (PNP, 250mA, High Side control)
- 1 user button, 2 user LEDs
- 16ADI16DO expansion tour
TODO:Link to shop
|
|

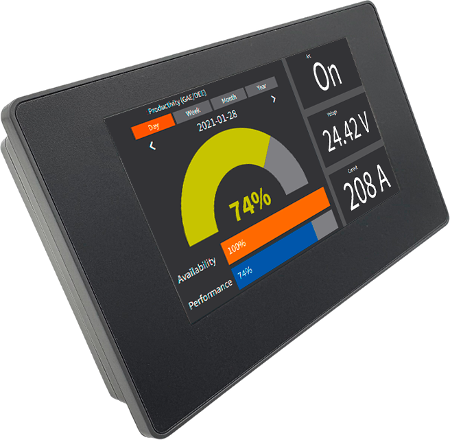

CommandHMI [COMING SOON]
- 8-28V power supply
- 16:9 TFT 4.3" (96x53mm)
- 480 x 272px
- Serial: RS232 + RS485
- Protocols: Modbus, ASCII, ...
- USB-A: Master modbus, data export (to USB key)
- USB-C: programming port
- Variant: 7.0", 10.2", 15.6", 4.3" Ethernet
- Read more
TODO:Link to shop
|
Product Nomenclature
| Letter
|
Feature
|
| DI
|
Digital Input. It is prefixed with the number of input (ex : 8DI or 8ADI).
May be in combination with A.
|
| A
|
Analog Input. It is prefixed with the number of analog input (ex : 8A or 8ADI).
May be in combination with DI.
|
| DO
|
Digital Output. It is prefixed with the number of analog output.
|
| S
|
Serial (RS485, MODBUS RTU)
|
| C
|
CAN bus
|
| P
|
SPI bus
|
| I
|
I2C bus
|
| U
|
UART
|
| T
|
Modbus TCP
|
Products tour
16ADI16DO board
Tour of the PymateIO 16 Analog-DataIn and 16 DataOut board.
Programming HowTo
Thonny IDE
Prepare your MicroPython IDE environment.
REPL
The MicroPython command line
Programming First-step
PymateIO
Access Input and outputs with PymateIO
Analog
Wiring and using Analog Input
16ADI16DO Tour
Tour of the PymateIO 16 Analog-DataIn and 16 DataOut board.
RS485 Basics
Accessing directly the RS485 bus to read/write sensors
Modbus
Using Modbus RTU over RS485. Use PymateIO as Modbus Master. Example with Wind Dir., Power Meter, Temp/Humidity/Lux meter.
Common use-cases
Remote Control
Click once to power it on. Click again to power it off.
Time Relay
Click to power/light-up for a given amount of time.
Delaying in code
Learn how to implement a no blocking delay within your loop. Using DS18B20 with OneWire protocol to demonstrate the behavior.
Hysteresis
Hysteresis management in running process. Discover the HeaterHis and CoolerHis controller class.
Value Mapping
TRAVAUX EN COURS. Great Trick to save time and coding
PID Regulation
TRAVAUX EN COURS. Running the software PID controller included within Pymate
LED Tuning
TRAVAUX EN COURS. LED can do so much more than being on or off.
HeartBeat, Pulsing, ErrorCode and more can be so useful.
Watchdog
TRAVAUX EN COURS. Re-inforce Cycle Time with WatchDog
Data Logging
TRAVAUX EN COURS. Permanent storage of history, sensor data, etc
HMI Display
Setup the HMI display and create the Pymate script accordingly.
HMI Display
A second example with numeric input on the HMI display
Mini projects
 | Page(s) under construction.
| |
Pymate Expansion programming
Board_ID
Identification of expansion board
CAN Scan
Scanning the CAN bus for boards and check for CAN error.
Programming
TRAVAUX EN COURS. How to control your 16ADI/16DO expansion. Input/Output/Analog/etc.
Change Board_ID
How to change the 16ADI16DO board identification on the CAN bus.
PymateIO Expansion Bus
Connector
Pymate.IO Expansion connector in details
SPI Bus
TRAVAUX EN COURS. Identification of expansion board
CAN Bus
TRAVAUX EN COURS. Accessing CAN
OneWire
Using OneWire protocol on the Pymate Expansion (part of another turotial).
Advanced programming
| Page(s) under construction.
| |
- About asyncio
- Creating tasks
- Scheduling tasks
References
| Page(s) under construction.
| |
- PymateIO library
- Helper libraries
